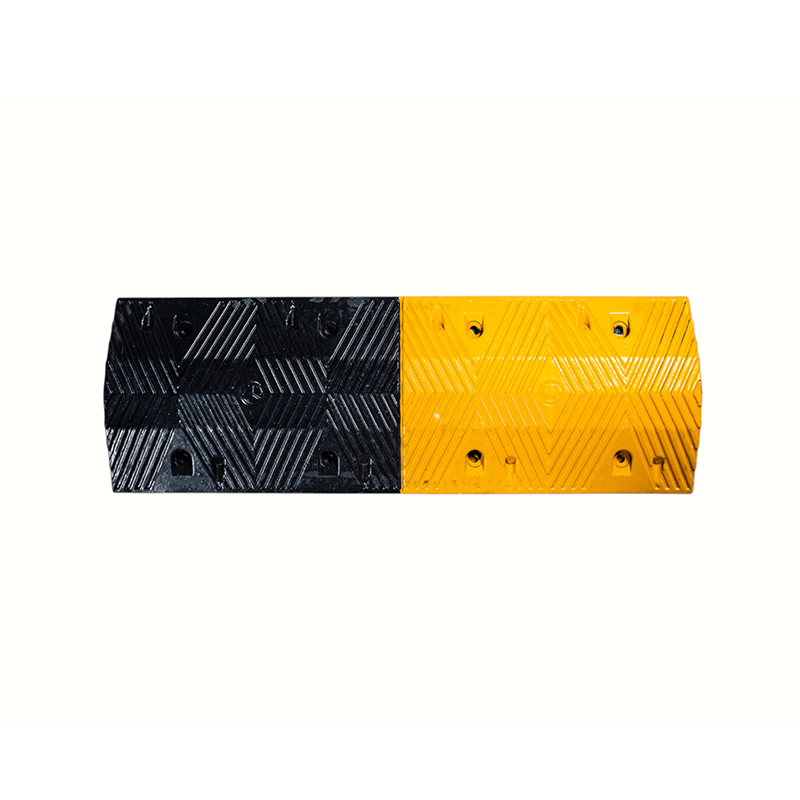

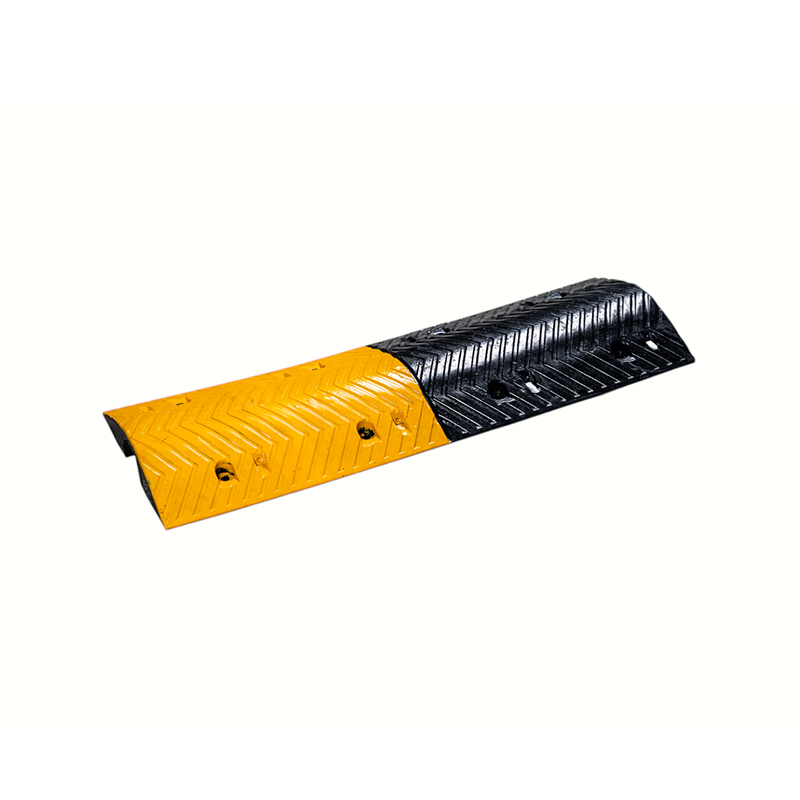

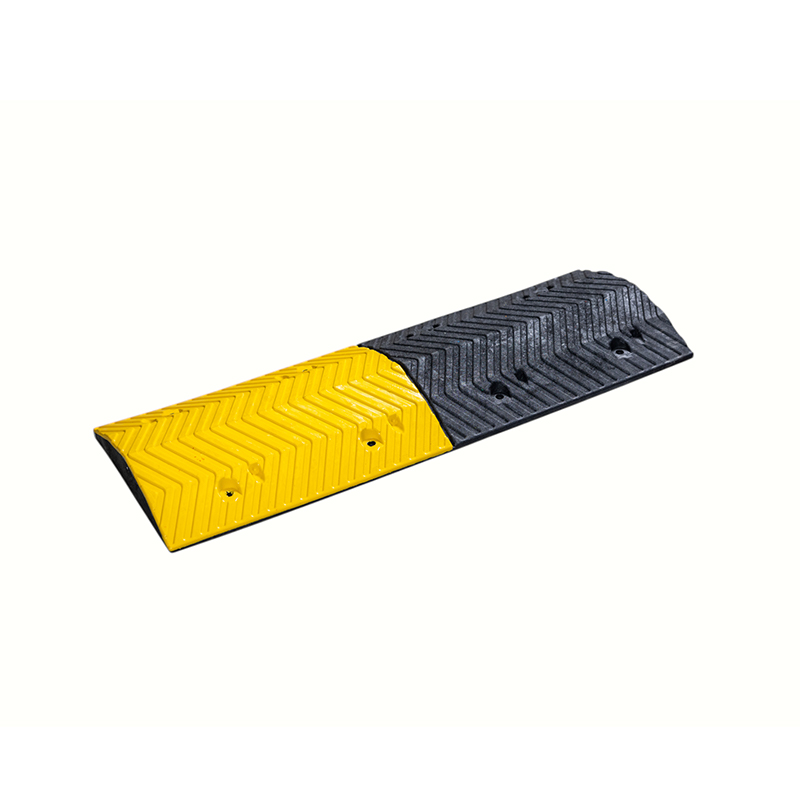

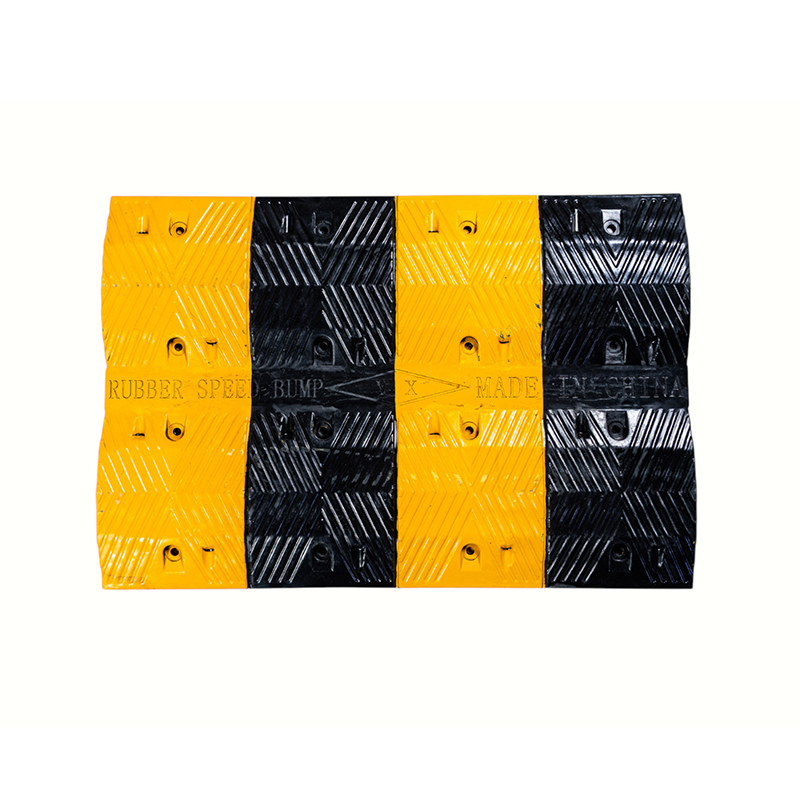

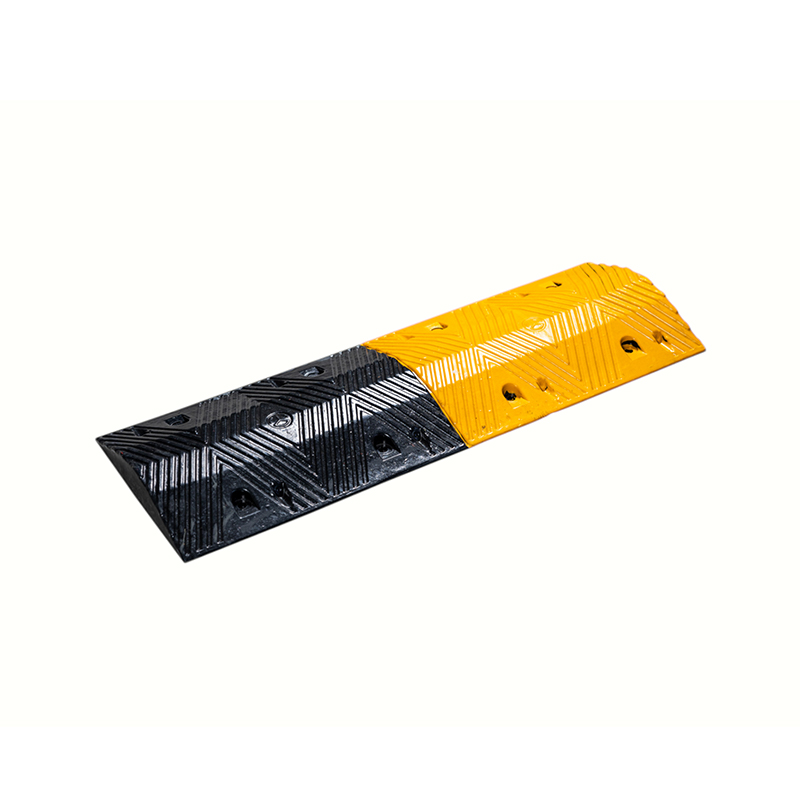

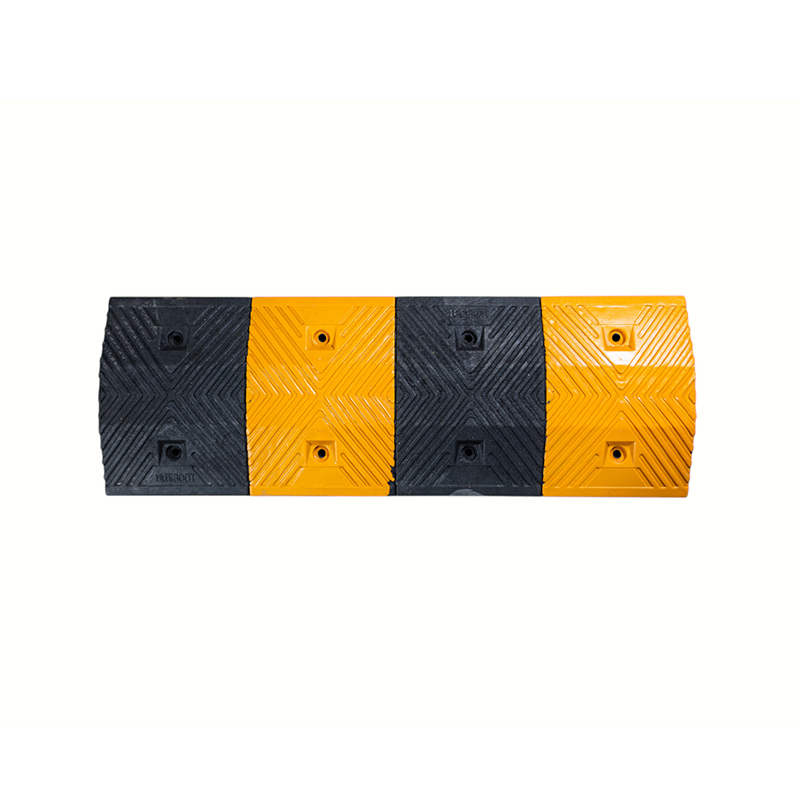

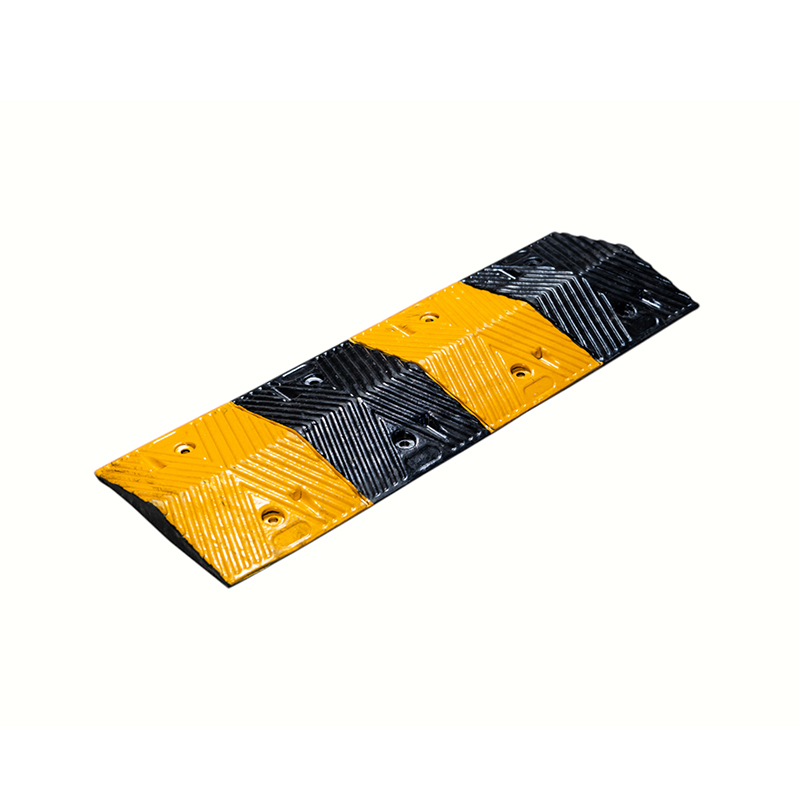

Double-Link Widened And Reinforced Rubber Speed Bumps

What is the maximum weight capacity of a double-link widened and reinforced rubber speed bump?

When specifying traffic calming devices for high-load environments, one of the first questions engineers and facility managers ask is about structural endurance. The double-link widened and reinforced rubber speed bumps represent a significant evolution in speed reduction technology, engineered specifically to withstand repeated heavy-vehicle compression while maintaining dimensional stability. Unlike conventional single-profile bumps, this reinforced series employs a dual-row linked architecture that distributes dynamic wheel loads across a broader footprint, effectively lowering the peak pressure per square inch. Based on third-party load testing and certified factory data, the standard double-link widened and reinforced rubber speed bumps carry a verified maximum static weight capacity of 80 metric tons (176,000 lbs) per axle, with a dynamic impact tolerance that accommodates frequent forklift, delivery truck, and municipal bus traffic without permanent deformation. This capacity places them in the heavy-duty category, outperforming many polyurethane or recycled-tire alternatives that typically rate below 40 tons.

To understand this performance benchmark, it is necessary to examine the material formulation and structural logic behind the product. Manufactured from high-density industrial-grade synthetic rubber with an internal reinforcement grid, the double-link widened and reinforced rubber speed bumps incorporate steel-embedded connection pins and interlocking side flanges that prevent lateral shift under shear forces. This design not only increases the gross load ceiling but also extends the fatigue life far beyond that of non-reinforced equivalents. For procurement professionals seeking reliable rubber speed hump supplier partnerships, the verified weight limit serves as a critical selection criterion, particularly when projects involve port access roads, industrial warehouse aprons, or steep-grade parking structures where gross vehicle weights regularly exceed 30 tons.

1. Engineering Foundation: Material Science and Reinforced Architecture

At the core of this product family lies a proprietary rubber compound that blends natural elastomers with high-tensile synthetic polymers. The double-link widened and reinforced rubber speed bumps are compression-molded under high pressure to eliminate internal voids, resulting in a homogeneous density that resists delamination even after years of UV exposure and thermal cycling. The widened profile—typically 500 mm in width compared to the standard 350 mm—increases the contact patch with tire surfaces, reducing the likelihood of point-load indentation. Meanwhile, the "double-link" refers to two parallel damping ridges that work in sequence: the first ridge initiates deceleration, and the second ridge provides a secondary vibration feedback that forces drivers to reduce speed more consistently.

From a load-bearing perspective, the reinforcement comprises a galvanized steel cord network embedded within the rubber matrix, positioned at the neutral axis to maximize bending resistance. This internal armature allows the unit to recover its original shape almost instantaneously after a 60-ton axle passes over it at 15 km/h. In laboratory conditions, samples have endured over 2 million impact cycles at 110% rated load without crack propagation, confirming that the maximum weight capacity is not a theoretical number but a guarantee backed by destructive and non-destructive testing. For clients sourcing through a trusted wholesale road speed bump channel, this translates into lower lifecycle costs and fewer replacement intervals.

Structural Comparison: Reinforced vs. Standard Rubber Bump

This reinforced architecture is particularly valuable in logistics hubs where heavy forklifts and container trucks operate continuously. Hangzhou Lutai Import and Export Trading Co., Ltd. has validated these specifications through in-house fatigue test rigs and third-party accredited laboratories, ensuring that every batch shipped meets the declared load rating. The company's two manufacturing bases in Taizhou and Henan employ automated compression molding lines that maintain strict consistency in wall thickness and steel-placement accuracy—factors that directly influence the final weight capacity.

2. Functional Classification: Application-Specific Variants

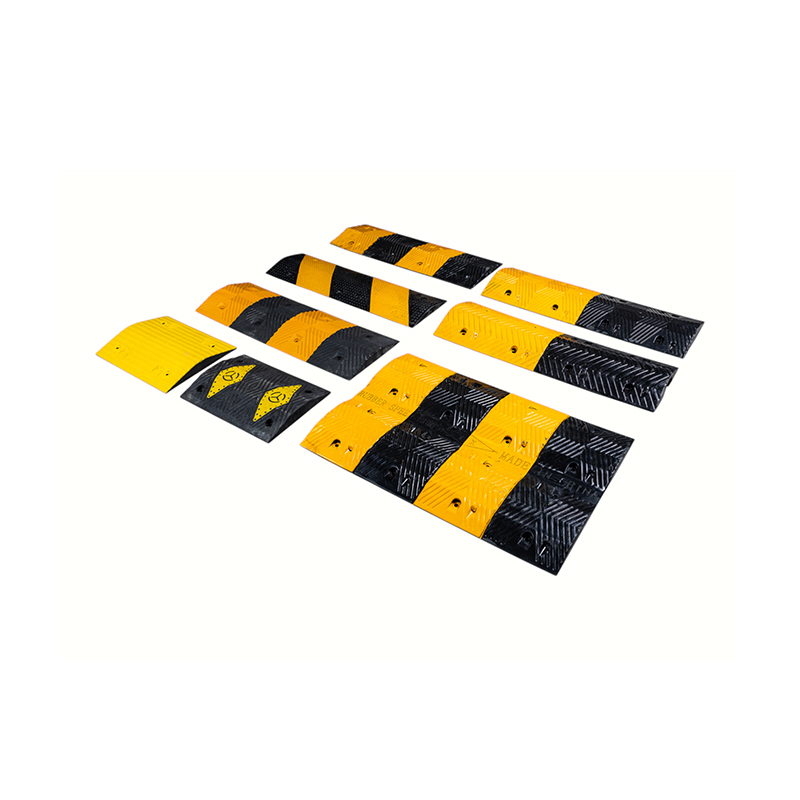

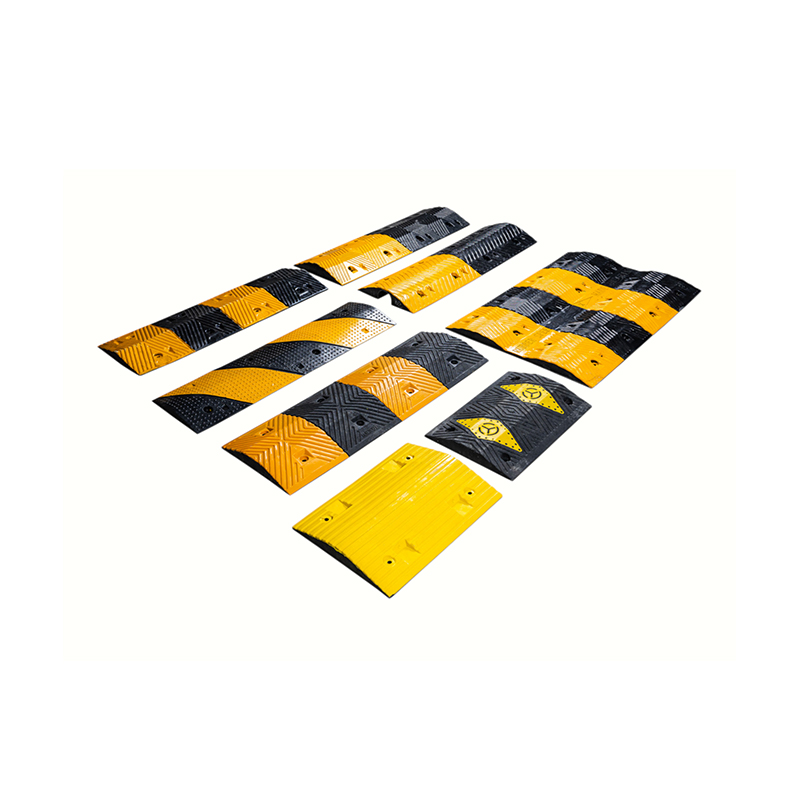

Within the broader category of double-link widened and reinforced rubber speed bumps, three distinct sub-series address different operational demands while sharing the same load-bearing core. Each variant retains the 80-ton capacity but adjusts surface texture, reflective layout, and modular connection details to suit particular environments. This modular philosophy allows facility managers to select the optimal configuration without compromising on structural strength.

2.1 Industrial Heavy-Duty Series

Designed for factory yards, mine access roads, and port terminals, this series features an extra-thick wear layer (22 mm) and deep chevron grooves that expel mud and debris. The double-link widened and reinforced rubber speed bumps in this series are bolted directly into concrete using 16 expansion anchors per module, ensuring zero movement under repeated 70-ton dump truck passes. The surface includes embedded carbide inserts for additional traction on wet, oily surfaces. Hangzhou Lutai Import and Export Trading Co., Ltd. offers this series with customized logo embossing, making it a preferred choice for mining conglomerates and heavy-industry operators who require both durability and brand visibility.

• Key features: 22 mm wear layer, carbide traction inserts, 16-point bolting
• Ideal for: Ports, mines, steel mills, concrete batching plants
• Surface treatment: Oil-resistant, anti-slip grit coating

2.2 Municipal & Public Area Series

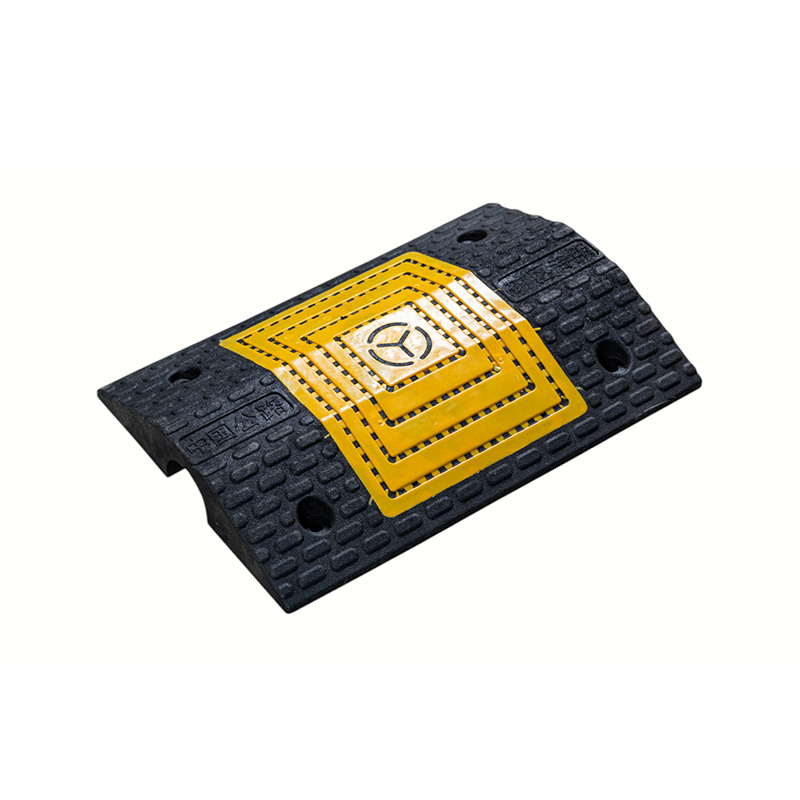

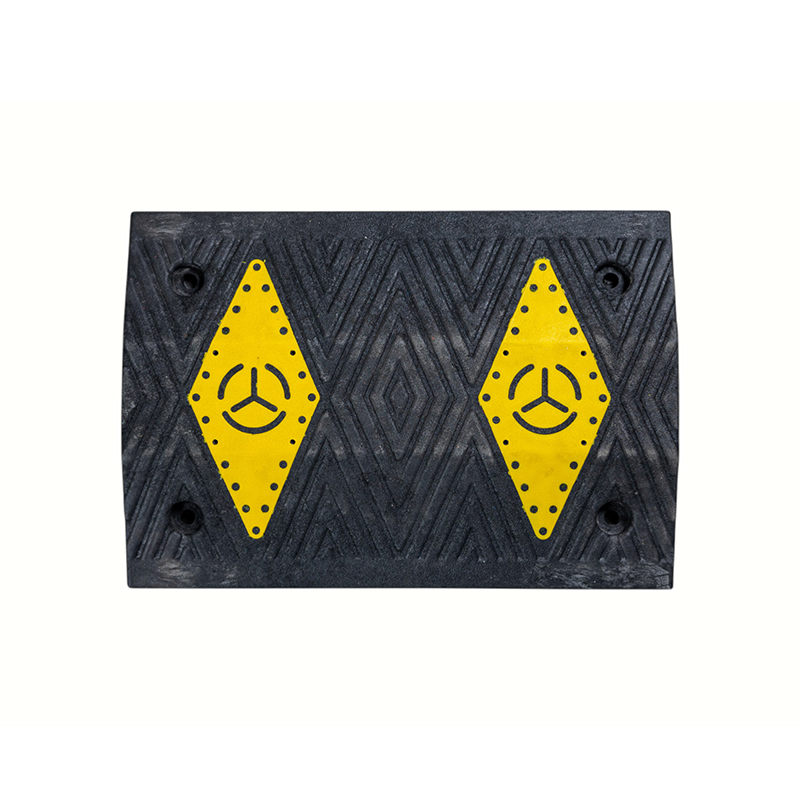

Focused on pedestrian safety and noise reduction, this variant uses a slightly softer durometer rubber (75 Shore A) to minimize vehicle suspension wear while retaining the full 80-ton capacity through its reinforced internal skeleton. The double-link widened and reinforced rubber speed bumps in this series are equipped with high-intensity matrix reflective blocks on both approach slopes, improving visibility for night-time school zones and hospital helipad approaches. The modular segments connect with a simplified pin-lock system that allows quick removal for winter snowplow operations—a feature frequently requested by city public works departments. As a leading rubber speed hump supplier, Hangzhou Lutai maintains stock of yellow/black and orange/black color combinations to match local traffic signage codes.

1. Primary applications: School zones, hospital entrances, pedestrian plazas
2. Reflective grade: Class II microprismatic sheeting
3. Noise level: ≤ 68 dB at 30 km/h (tested per ISO 5130)
4. Installation: Surface-mount with reusable anchors

2.3 Modular Expansion & Custom Series

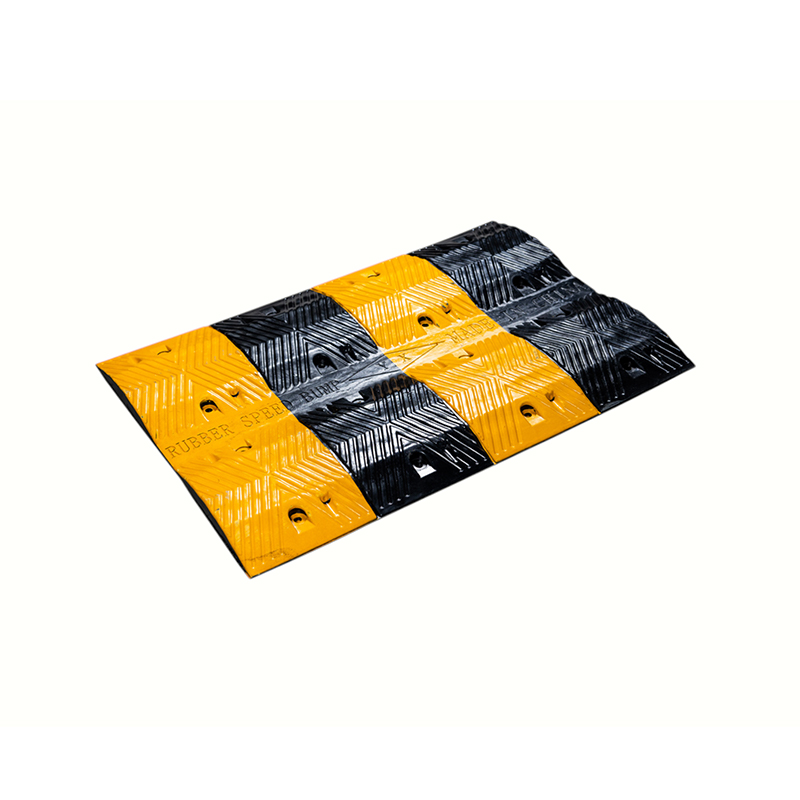

For projects requiring non-standard widths or curved layouts, the modular expansion series offers end-connectors that allow side-by-side joining to create continuous speed tables up to 6 meters wide. The double-link widened and reinforced rubber speed bumps in this family are manufactured with female-male coupling ends that transfer shear loads directly through the steel reinforcement, maintaining the 80-ton rating even in extended assemblies. This series is particularly popular in toll plazas and border checkpoints where vehicles approach from varying angles. Hangzhou Lutai Import and Export Trading Co., Ltd. leverages its OEM/ODM capabilities to produce custom radii and colored inserts, ensuring that the speed bumps integrate seamlessly with site-specific aesthetic and functional requirements. All custom variants undergo the same rigorous load verification as the standard modules.

Cross-Series Specification Matrix

3. Quality Assurance and Global Compliance

All double-link widened and reinforced rubber speed bumps are produced under the ISO 9001 Quality Management System at Hangzhou Lutai's facilities, with each batch subjected to a 12-step inspection protocol covering dimensional tolerance, steel positioning, and shore hardness. The company holds CE and CNAS certifications, and its export documentation includes material test reports and load verification certificates. This commitment to quality has made Hangzhou Lutai Import and Export Trading Co., Ltd. a preferred partner for infrastructure projects across North America, Europe, and the Middle East, where local authorities often require third-party validation of load ratings. The company's in-house R&D team continuously refines the rubber compound to improve low-temperature flexibility and ozone resistance, ensuring that the 80-ton capacity remains consistent even in extreme climates ranging from -40°C to 80°C.

Beyond the technical specifications, the company provides comprehensive after-sales support, including installation drawings, torque specifications, and maintenance schedules. For large-scale tenders, Hangzhou Lutai offers factory audit arrangements and sample testing prior to mass production. This transparency has established the brand as a credible wholesale road speed bump source for government agencies and multinational construction firms alike.

Frequently Asked Questions

For detailed technical datasheets, installation guides, or to request a sample, contact Hangzhou Lutai Import and Export Trading Co., Ltd. directly. Our engineering team is available to assist with project-specific load calculations and site suitability assessments.
