What is the difference between a rubber base and a PVC cover cable protector?
When selecting a floor cable protection system for industrial, commercial, or event environments, one of the most frequent questions is the material distinction between the base and the cover. The product often referred to as a rubber cable protector ramp / reinforced rubber base high-load-bearing capacity pvc cover 3-channel heavy-duty cable protector combines two distinct material philosophies. The rubber base provides shock absorption and grip, while the PVC cover delivers rigidity and high-visibility warning. Understanding their differences is essential for safety, durability, and total cost of ownership. This article breaks down the design logic, functional trade-offs, and application-driven choices behind each component, supported by real-world engineering considerations.

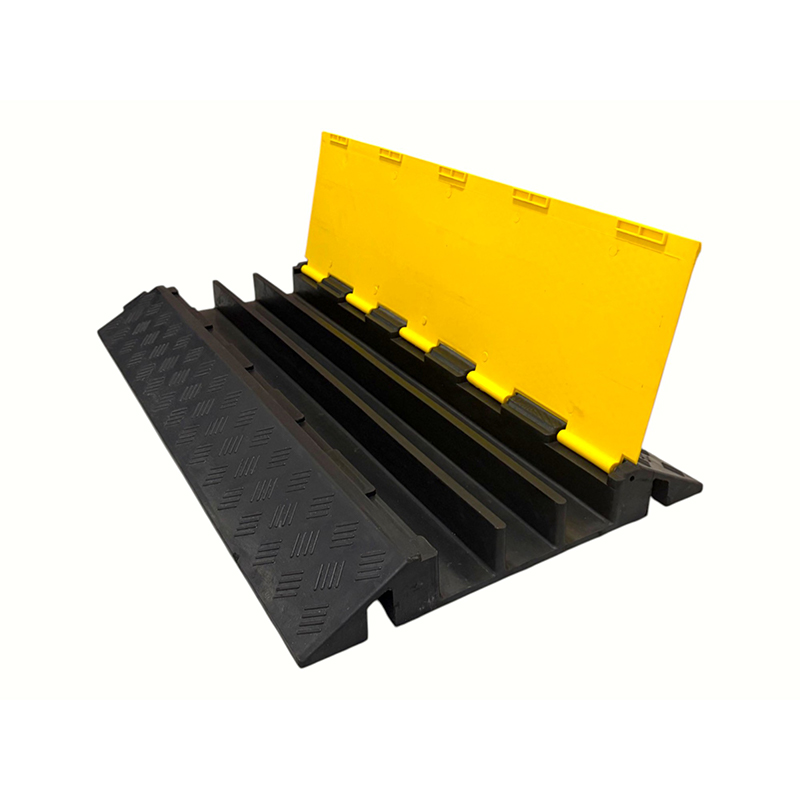

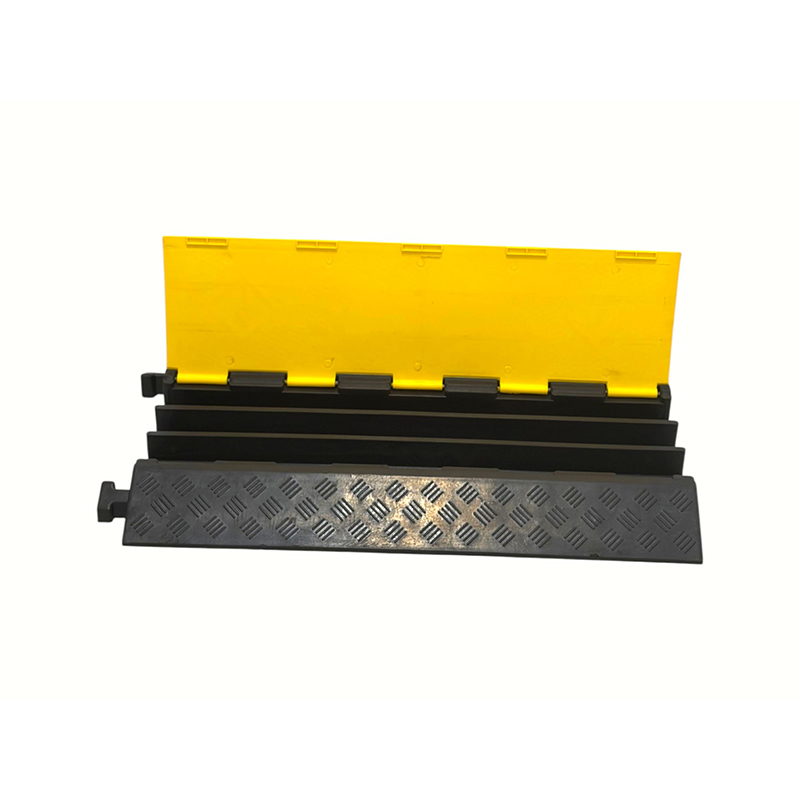

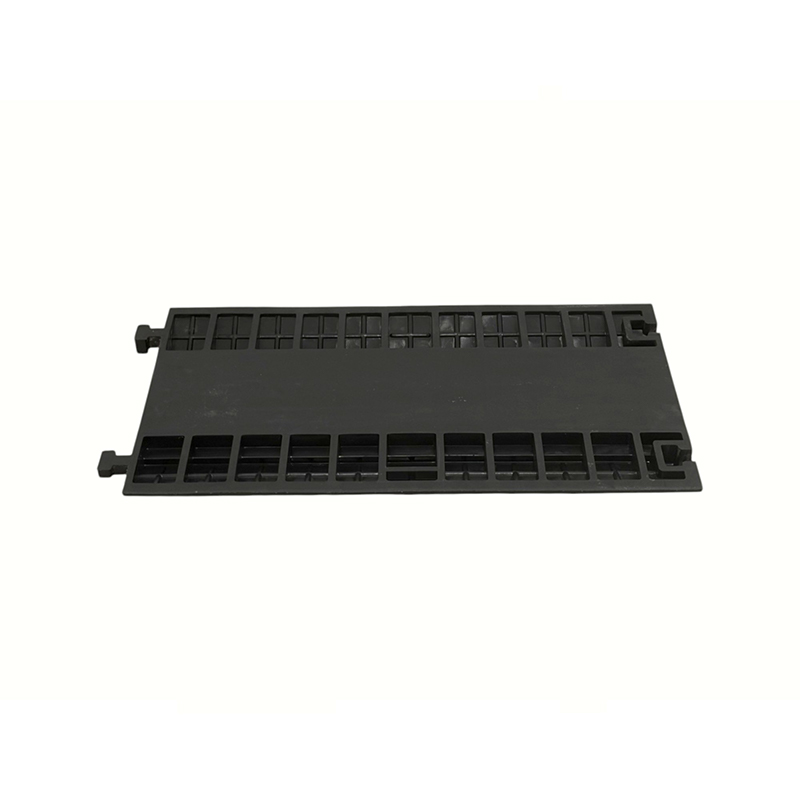

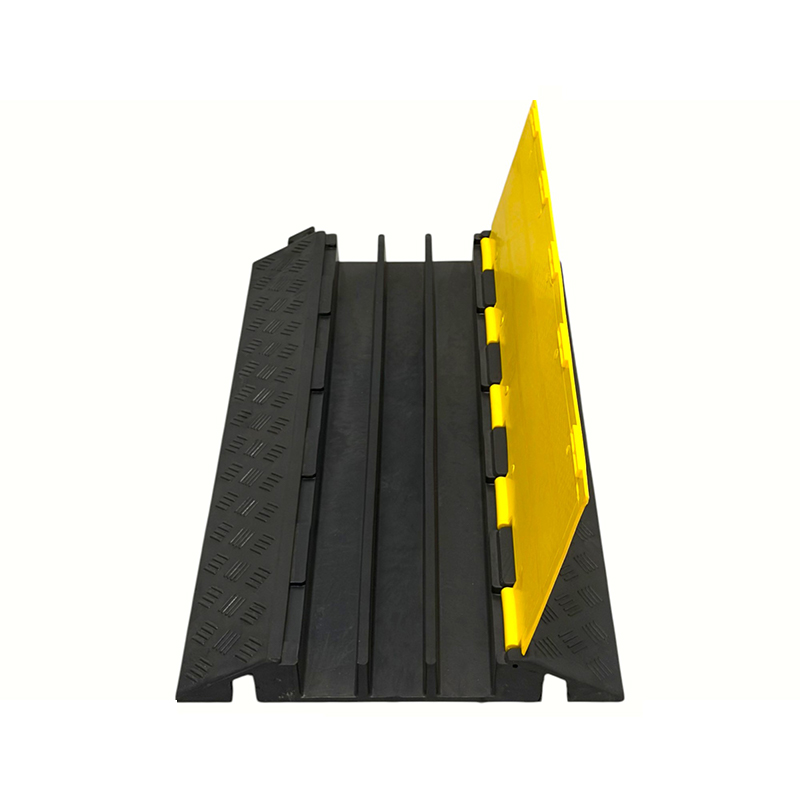

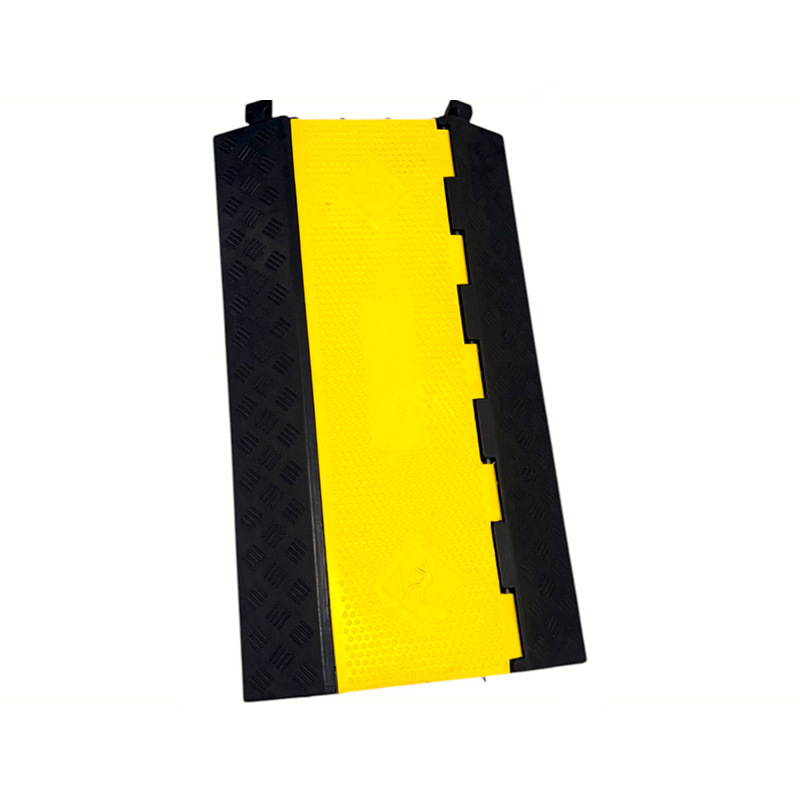

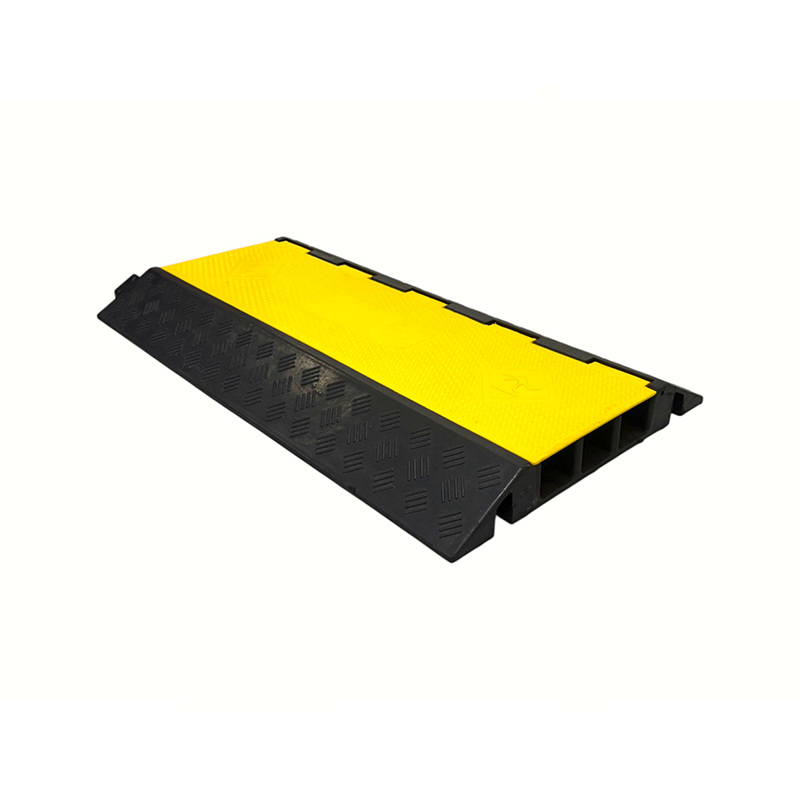

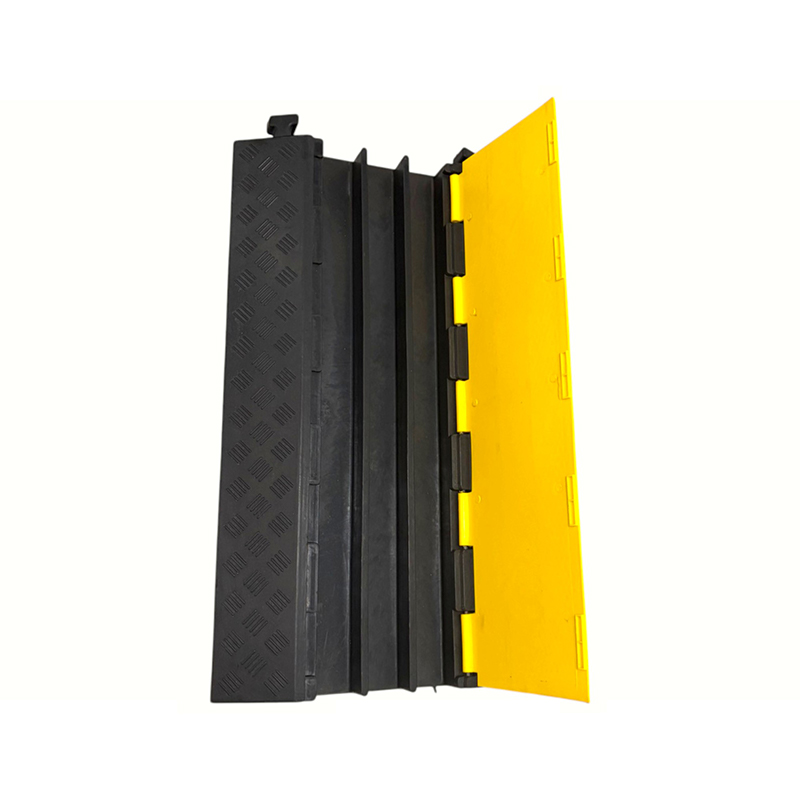

At its core, the rubber cable protector ramp / reinforced rubber base high-load-bearing capacity pvc cover 3-channel heavy-duty cable protector is engineered for two conflicting demands: flexibility to conform to uneven floors, and stiffness to withstand repeated wheel loads. The base, made from recycled high-density rubber, absorbs dynamic impacts from forklifts and trucks. The lid, constructed from yellow PVC engineering plastic, offers a hard, wear-resistant surface that does not deform under static pressure. This dual-material design is not a cost-cutting measure but a deliberate performance choice, as we will explore through three distinct product sub-categories.
1. Standard-Duty Rubber Base with PVC Hinged Lid
This configuration represents the baseline design for most indoor and temporary outdoor applications. The base is a thickened recycled rubber compound, while the top cover is a yellow PVC lid with a flip-top hinge. The primary differentiator here is material compliance with surface friction. The rubber base offers a high coefficient of friction (typically >0.8), reducing lateral movement even on polished concrete. In contrast, the PVC cover is selected for its high compressive strength (over 30 MPa) and UV stability, preventing cracking under sunlight exposure.
The rubber cable protector ramp / reinforced rubber base high-load-bearing capacity pvc cover 3-channel heavy-duty cable protector in this class typically supports static loads up to 6 tons and dynamic loads up to 4 tons, making it suitable for warehouse pedestrian-vehicle mixed traffic. The PVC lid features a non-slip embossed pattern that works synergistically with the rubber base – even if the lid becomes wet, the base remains anchored to the floor. This design is widely adopted in exhibition halls, airports, and retail backrooms where frequent cable reconfiguration occurs.
- Key technical features: Flip-top access for quick cable changes; tool-free interlocking T-shaped connectors; operating temperature -20°C to +60°C.
- Typical cable types: 3×16A power cords, CAT6 data cables, ½-inch air hoses.
- Safety compliance: Slip resistance R10 rating; yellow color meets high-visibility workplace standards.
Hangzhou Lutai Import and Export Trading Co., Ltd. produces this variant with ISO 9001-certified processes, ensuring consistent rubber hardness (Shore A 75±5) and PVC lid thickness (4mm minimum). Their quality control includes a 100% hinge-cycle test (10,000 open/close operations) to guarantee field reliability.
2. Heavy-Duty Reinforced Rubber Base with Extra-Thick PVC Cover
For ports, logistics distribution centers, and construction sites with frequent 10-ton+ forklift traffic, the reinforced base variant elevates material performance. The rubber base here is compounded with carbon-black and silica fillers to increase tear resistance by nearly 40% compared to standard rubber. Simultaneously, the PVC cover is thickened to 6mm and formulated with impact modifiers, creating a reinforced rubber base high-load-bearing capacity pvc cover 3-channel heavy-duty cable protector that can endure 10-ton static loads and 8-ton dynamic rolling loads.
The critical difference between the base and the cover in this category is energy dissipation versus load transfer. The rubber base deforms elastically under wheel pressure, distributing the load across a wider floor contact area – this reduces point-pressure damage to both the cables and the floor surface. The PVC cover, being rigid, transfers the load directly downward without absorbing energy, which protects the rubber base from shear fatigue. Together, they form a composite system that outlasts single-material protectors by 2 to 3 times in heavy-use scenarios.
| Property |
Standard-Duty (Rubber Base + PVC Lid) |
Heavy-Duty (Reinforced Base + Thick PVC) |
| Max static load |
6,000 kg |
10,000 kg |
| Base hardness (Shore A) |
75 ± 5 |
85 ± 5 |
| PVC cover thickness |
4 mm |
6 mm |
| Temperature range |
-20°C ~ +60°C |
-30°C ~ +70°C |
| Recommended use |
Warehouses, exhibitions |
Ports, heavy manufacturing |
Hangzhou Lutai Import and Export Trading Co., Ltd. offers this heavy-duty variant with optional drainage holes and reflective inserts – a direct response to customer feedback from North American and European logistics operators. Their in-house R&D team has also developed an anti-UV additive package for the PVC cover, extending outdoor lifespan to over 5 years without chalking or embrittlement.
3. Extreme-Condition Rubber Base with Flame-Retardant PVC Cover
In petrochemical plants, tunnel construction, and outdoor festival power distribution, the environmental demands go beyond mechanical strength. This third category uses a specially formulated rubber base that remains flexible down to -30°C while resisting hydraulic oils and diesel fuel. The PVC cover is compounded with halogen-free flame-retardant additives, achieving UL 94 V-0 rating. Here, the rubber cable protector ramp / reinforced rubber base high-load-bearing capacity pvc cover 3-channel heavy-duty cable protector must also maintain electrical insulation – the rubber base offers dielectric strength >20 kV/mm, while the PVC cover provides a secondary insulating barrier.
The fundamental difference in this tier is chemical compatibility and fire safety. The rubber base is not merely high-density; it is formulated with nitrile-butadiene rubber (NBR) for oil resistance, whereas the PVC cover uses a specialized plasticizer system that does not migrate into the rubber, preventing softening over time. This separation of material functions is critical because oil-degraded rubber loses load-bearing capacity, and plasticizer-leached PVC becomes brittle. By keeping the base and cover as distinct material systems, each can be independently optimized.
- Defined application: Offshore drilling platforms, automotive assembly lines, outdoor music events.
- Core advantage: Maintains flexibility and impact resistance even after prolonged chemical exposure.
- Installation note: Requires stainless steel interlocking pins (supplied by Hangzhou Lutai) to prevent galvanic corrosion in salt-spray environments.
For this extreme category, Hangzhou Lutai Import and Export Trading Co., Ltd. provides full material test reports, including oil immersion (ASTM D471) and low-temperature impact (ISO 179). Their CE and CNAS certifications cover these enhanced material specifications, giving global buyers confidence in demanding projects across the Middle East and Asia-Pacific regions.
Comparative Summary: Rubber Base vs. PVC Cover – Functional Division
In all three categories, the rubber base and PVC cover serve non-interchangeable roles. The rubber base is the mechanical shock absorber and floor-gripping layer – it handles uneven surfaces, dampens vibration from passing vehicles, and prevents the entire ramp from sliding. The PVC cover, in contrast, is the wear-facing and warning layer – its hardness resists abrasion from tire scrubbing, its yellow color provides clear visual guidance, and its rigid surface protects the rubber from concentrated point loads (e.g., steel wheel casters).
Choosing between a rubber base and a PVC cover is not a binary choice – they are complementary. The real decision lies in the grade of each material. For most indoor applications, a standard rubber cable protector ramp / reinforced rubber base high-load-bearing capacity pvc cover 3-channel heavy-duty cable protector offers the best balance. For heavy industry, reinforced rubber and thicker PVC are mandatory. For extreme chemistry or temperature, specialty compounds for both parts become essential. Hangzhou Lutai Import and Export Trading Co., Ltd. supports all three tiers, with OEM options for custom colors, logos, and drainage configurations.
Frequently Asked Questions
Q1: What is the main reason to choose a rubber base over a full PVC or full rubber single-piece protector?
The rubber base provides superior floor grip and vibration damping, while the PVC cover offers higher abrasion resistance and UV stability. A single-material design cannot achieve both simultaneously without compromising one property. The dual-material rubber cable protector ramp / reinforced rubber base high-load-bearing capacity pvc cover 3-channel heavy-duty cable protector is therefore the most versatile solution for mixed traffic environments.
Q2: Can the PVC cover be replaced separately if damaged, without changing the rubber base?
Yes – this is a key design advantage. The hinged PVC lid is detachable via stainless steel pins. Hangzhou Lutai Import and Export Trading Co., Ltd. offers replacement covers as spare parts, reducing long-term maintenance costs. The base itself often outlasts multiple cover replacements.
Q3: How does the 3-channel design affect the choice between rubber base and PVC cover materials?
The 3-channel configuration increases the total surface area exposed to wheel loads. A reinforced rubber base is essential to prevent channel collapse under heavy vehicles, while the PVC cover must be thick enough to avoid denting between channels. Our heavy-duty variant directly addresses this with a 6mm lid and 85 Shore A base rubber.
Q4: Does Hangzhou Lutai support custom embossing or colors for the PVC cover?
Absolutely. For bulk orders, Hangzhou Lutai Import and Export Trading Co., Ltd. provides custom PVC lid colors, embossed corporate logos, and even reflective tape inserts – all while maintaining the same high-load-bearing performance. This service is particularly popular among rental equipment companies and event organizers.
Ready to specify the right combination of rubber base and PVC cover for your project? Explore the full technical specifications on our product page – featuring detailed load charts, material certificates, and custom ordering options for global delivery.
