How to Choose the Right Radius Size for Your Corner Guard?
Selecting the correct radius size for a corner protection system is not a cosmetic decision—it is a critical engineering choice that affects impact absorption, vehicle clearance, and overall site safety. Among the many options available, the large-radius cushioned reinforced rounded reflective rubber corner protectors stand out as the most versatile solution for high-traffic industrial and commercial environments. This guide will help you evaluate radius requirements through functional parameters, application scenarios, and structural compatibility, ensuring you invest in a guard that delivers lasting value.
1. Understanding Radius and Its Protective Impact

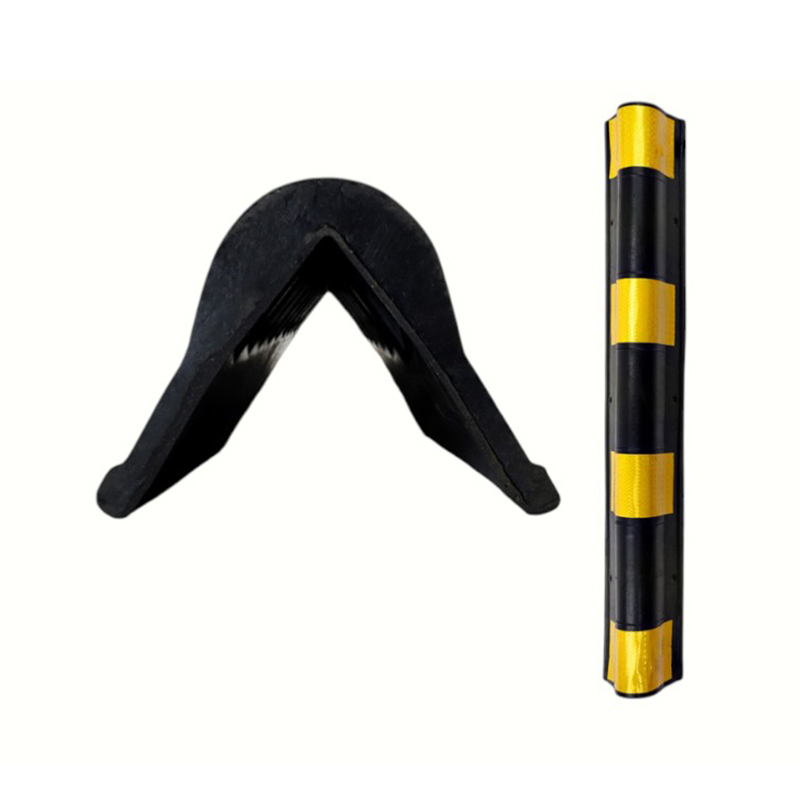

The radius of a corner guard defines the curvature of its protective face. A larger radius creates a gentler, more sweeping curve, which directly influences how impact forces are dissipated. For facilities using forklifts, automated guided vehicles, or heavy carts, the large-radius cushioned reinforced rounded reflective rubber corner protectors offer a distinct advantage: they increase the contact area during glancing blows, reducing peak pressure on both the guard and the moving asset. This large-radius cushioned reinforced rounded reflective rubber corner protectors are engineered with an arc energy-absorption structure that distributes shear forces more evenly than right-angle alternatives, making them ideal for curved corridors and tight maneuvering zones.
When choosing the right radius, start by assessing the turning radius of the largest vehicle that frequents the area. A guard with too small a radius may cause the vehicle’s rear end or side mirror to snag, while an excessively large radius could reduce usable floor space. Most industrial applications benefit from a radius between 50 mm and 100 mm, but custom solutions are often necessary for unique column shapes or architectural irregularities.
2. Core Product Series: Tailoring Radius to Application Demands
Based on field performance data and installation feedback, we classify our protective solutions into three primary series. Each series addresses specific operational challenges, and the choice of radius size is intrinsically linked to the series’ design philosophy.
2.1 Standard-Duty Curved Guards – General Logistics & Parking

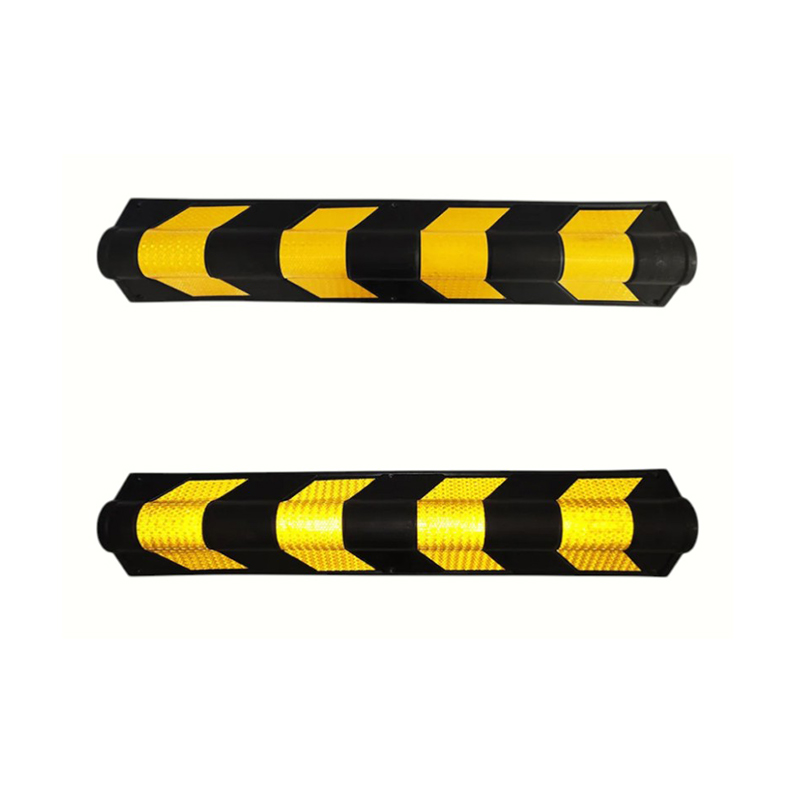

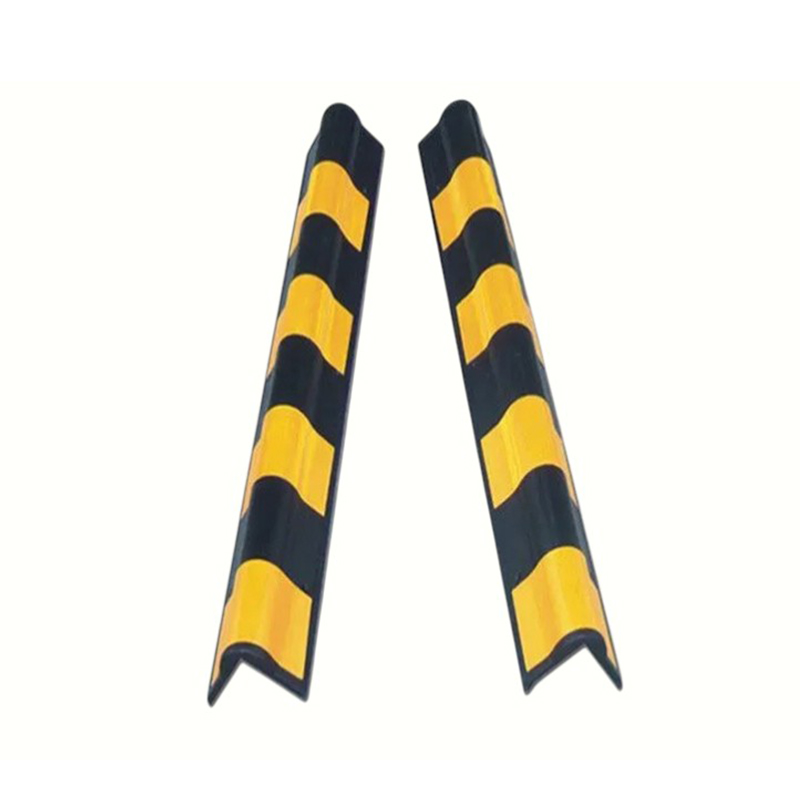

This series targets warehouses, retail parking garages, and loading docks where traffic consists mainly of passenger vehicles, small pallet jacks, and light-duty carts. The defining feature is a moderate radius (typically 60–75 mm) that balances impact protection with space efficiency. These large-radius cushioned reinforced rounded reflective rubber corner protectors are equipped with high-intensity yellow reflective film that wraps around the curved surface, providing all-around visual warning from multiple approach angles. The resilient industrial rubber compound offers excellent wear resistance in busy logistics corridors, while the rounded edges eliminate sharp corners—a pedestrian-friendly design that prevents bruises or scratches, especially in mixed-use areas.
For this series, the radius choice is often dictated by column diameter. Standard square pillars work well with 60 mm radius guards, while slightly curved columns may require a larger radius to maintain full surface contact. Hangzhou Lutai Import and Export Trading Co., Ltd. offers pre-drilled holes for minimalist installation with expansion bolts, and the UV-resistant surface ensures outdoor durability. This series is also compatible with custom reflective patterns or logo embossing, allowing facilities to reinforce brand identity while maintaining safety.
- Key advantage: Cost-effective protection for mixed vehicle and foot traffic.
- Optimal radius: 60–75 mm – sufficient for passenger vehicles and light carts.
- Reflective coverage: 180° visual warning due to curved surface expansion.
2.2 Heavy-Duty Reinforced Series – High-Impact Industrial Zones
For environments with frequent forklift traffic, heavy pallet movers, or oversized equipment, the heavy-duty reinforced series is the definitive choice. These guards feature a larger radius—typically 90 to 120 mm—combined with an internal reinforcement layer that prevents deformation under repeated impacts. The large-radius cushioned reinforced rounded reflective rubber corner protectors in this category are manufactured from high-quality modified rubber that balances hardness and flexibility, ensuring the surface rebounds after collisions rather than cracking or splitting.
The larger radius serves two critical functions: it provides a greater cushioning space for energy absorption and increases the effective deflection angle, reducing the chance of tire or bumper damage. This series is particularly recommended for round and irregular corners—such as curved walls, spiral ramps, or columns with non-standard geometries—because the flexible structure adapts easily to slight architectural curves. Hangzhou Lutai Import and Export Trading Co., Ltd. operates advanced manufacturing bases in Taizhou and Henan, enabling factory-direct pricing for these high-specification guards while maintaining CE and CNAS compliance. The reflective film on this series is engineered to withstand daily scrubber traffic and harsh cleaning chemicals, making it suitable for both indoor cold storage and outdoor loading bays.
- Key advantage: Superior impact resistance and long-term shape retention.
- Optimal radius: 90–120 mm – ideal for forklifts and heavy carts.
- Reinforcement: Internal structural layer prevents permanent indentation.
2.3 Architectural & Aesthetic Series – Healthcare, Education & Hospitality

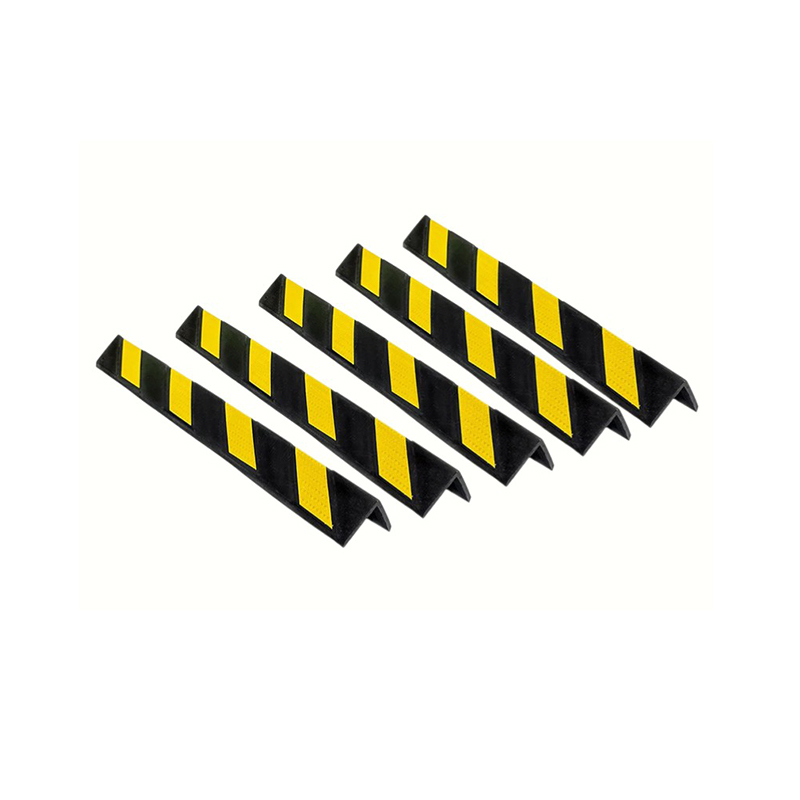

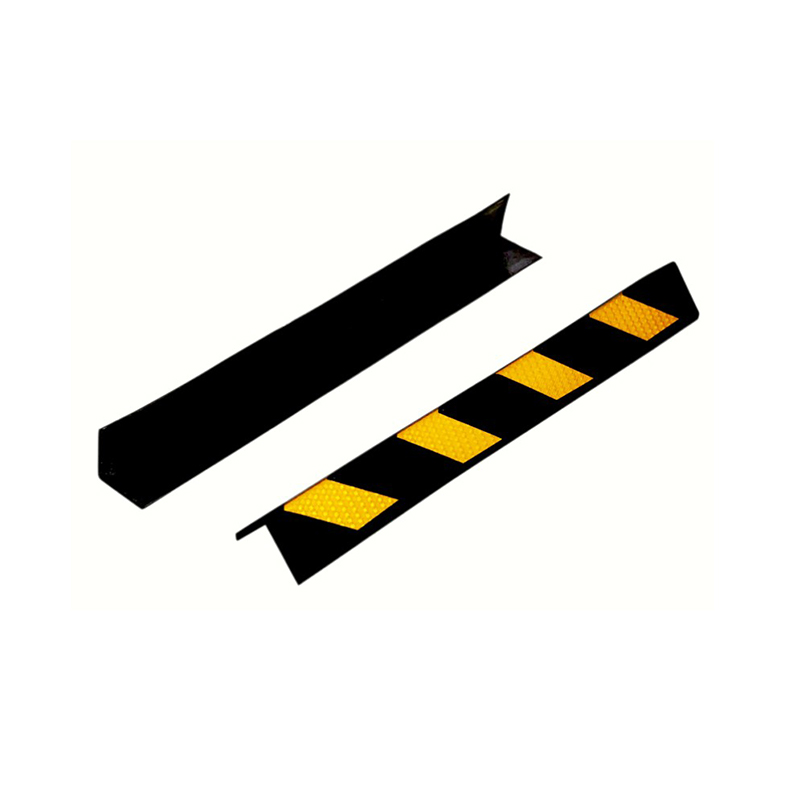

In settings where safety must coexist with architectural aesthetics—such as hospitals, schools, and hotel parking lots—the architectural series prioritizes a seamless visual integration while maintaining robust protection. These guards often feature a custom-matched radius (from 50 mm to 100 mm) based on the specific curvature of the wall or column, ensuring a flush fit that does not protrude awkwardly into walkways. The yellow black reflective corner guard design is available in this series, offering a high-contrast warning scheme that is both functional and visually balanced.
The radius choice here is primarily driven by human traffic patterns and architectural constraints. A larger radius (e.g., 100 mm) creates a more gradual curve that is less likely to catch clothing or equipment, while a smaller radius may be preferred for narrow corridors to preserve maximum passage width. All products in this series feature the signature rounded edge design that eliminates sharp protrusions, directly supporting a human-centric safety approach. Hangzhou Lutai Import and Export Trading Co., Ltd. supports OEM/ODM development for this series, allowing customers to specify exact radius dimensions, reflective film colors, and even embossed logo placement on the rubber body. This flexibility makes the architectural series a preferred choice for projects requiring both safety certification and design harmony.
- Key advantage: Customizable appearance and precise architectural fit.
- Optimal radius: 50–100 mm – tailored to wall curvature and pedestrian needs.
- Reflective options: yellow black reflective corner guard or custom colors.
3. Comparative Analysis of Radius Series
The table below provides a side-by-side comparison of the three series based on radius range, impact energy absorption, reflective angle coverage, and typical installation environment. This data assists procurement teams and facility managers in making an informed, data-backed decision.
| Parameter |
Standard-Duty Series |
Heavy-Duty Reinforced Series |
Architectural Series |
| Recommended Radius |
60–75 mm |
90–120 mm |
50–100 mm (custom) |
| Primary Impact Source |
Cars, pallet jacks |
Forklifts, heavy carts |
Pedestrians, light vehicles |
| Reflective Angle Coverage |
180° (standard film) |
220° (extended curve) |
160°–200° (custom) |
| Energy Absorption Capacity |
Moderate |
High (reinforced core) |
Moderate (flexible compound) |
| Typical Environments |
Parking garages, retail docks |
Warehouses, manufacturing plants |
Hospitals, schools, hotels |
4. Step-by-Step Selection Process
To systematically determine the ideal radius for your facility, follow this structured approach:
- Measure the turning radius of the largest vehicle or cart that will navigate the corner. Add a 15–20% safety margin to account for operator error or load swing.
- Evaluate surface contact – if the corner is irregularly shaped (curved columns or non-90° angles), opt for the wholesale rubber wall corner protector with a larger radius to ensure full adhesion and impact distribution.
- Assess pedestrian density – in areas with high foot traffic, prioritize a guard with a rounded, gentle curve (larger radius) and pedestrian-friendly design to minimize injury risk.
- Check environmental factors – outdoor installations require UV- and corrosion-resistant materials, which are standard in all large-radius cushioned reinforced rounded reflective rubber corner protectors offered by Hangzhou Lutai Import and Export Trading Co., Ltd..
- Review maintenance access – ensure the chosen radius does not obstruct cleaning equipment or door swings.
5. Company Capabilities and Quality Assurance
Behind every reliable corner protection system lies a robust manufacturing and quality framework. Hangzhou Lutai Import and Export Trading Co., Ltd. operates under the ISO 9001 Quality Management System, ensuring that every large-radius cushioned reinforced rounded reflective rubber corner protectors meets stringent durability and safety standards. Our two manufacturing bases in Taizhou and Henan allow us to offer wholesale rubber wall corner protector solutions at competitive factory-direct prices without compromising on lead times. We have secured multiple international patents and comply with CE and CNAS certification requirements, making our products trusted across North America, Europe, Asia-Pacific, and the Middle East.
Our R&D team specializes in OEM/ODM development, meaning we can tailor the radius, reflective film pattern, and even embossed branding directly onto the rubber body. This capability is especially valuable for architectural projects requiring specific visual or dimensional standards. By choosing Hangzhou Lutai Import and Export Trading Co., Ltd., you gain a partner who adheres to the principle of "Competing through Quality, Growing through Mutual Benefit," ensuring your facility receives corner protection that is both scientifically designed and economically viable.
Frequently Asked Questions
Q1: How do I know if I need a 60 mm or a 100 mm radius guard?
The decision depends on the vehicle type and turning clearance. For passenger cars and small carts, a 60–75 mm radius is usually sufficient. For forklifts or heavy equipment, a 90–120 mm radius is recommended to prevent tire snagging and to provide greater energy absorption. Measure the vehicle’s approach angle and add a safety buffer—if in doubt, choose the larger radius for enhanced protection.
Q2: Can the reflective film be customized to yellow-black or other colors?
Yes. Hangzhou Lutai Import and Export Trading Co., Ltd. offers customization of reflective patterns and colors, including the popular yellow black reflective corner guard scheme. We can also embed logos or specific warning symbols on the rubber body to meet site-specific safety requirements.
Q3: Are these corner protectors suitable for outdoor use in extreme weather?
Absolutely. Our large-radius cushioned reinforced rounded reflective rubber corner protectors are manufactured with UV- and corrosion-resistant modified rubber, making them suitable for both indoor and outdoor installations. They perform reliably in temperatures ranging from -30°C to +70°C, and the reflective film retains its visibility even after prolonged sun exposure.
Q4: What mounting hardware is included, and can I install these guards on curved columns?
Each guard comes with standardized pre-drilled holes and expansion bolts for concrete, brick, or steel structures. For slightly curved columns, the flexible rubber structure of the large-radius cushioned reinforced rounded reflective rubber corner protectors adapts well to the surface. For strongly irregular shapes, we recommend contacting our R&D team for a custom-molded solution—a service we routinely provide to hospitals and industrial clients worldwide.
