All-Around 45/90 Degree Elbow Module Interlocking Cable Protector Corner

What are the main features of a 45/90 degree interlocking cable protector corner?

In the complex environments of modern construction sites, large-scale exhibitions, and temporary event power distribution, cable protection is no longer a simple matter of covering wires. The emergence of the all-around 45/90 degree elbow module interlocking cable protector corner has redefined the standards for curved cable management. This article systematically analyzes the core features of this innovative corner protector, focusing on its structural design, material performance, and system interoperability, while addressing the critical needs of road safety in industrial applications.

1. Flexible Corner Interlocking Mechanism

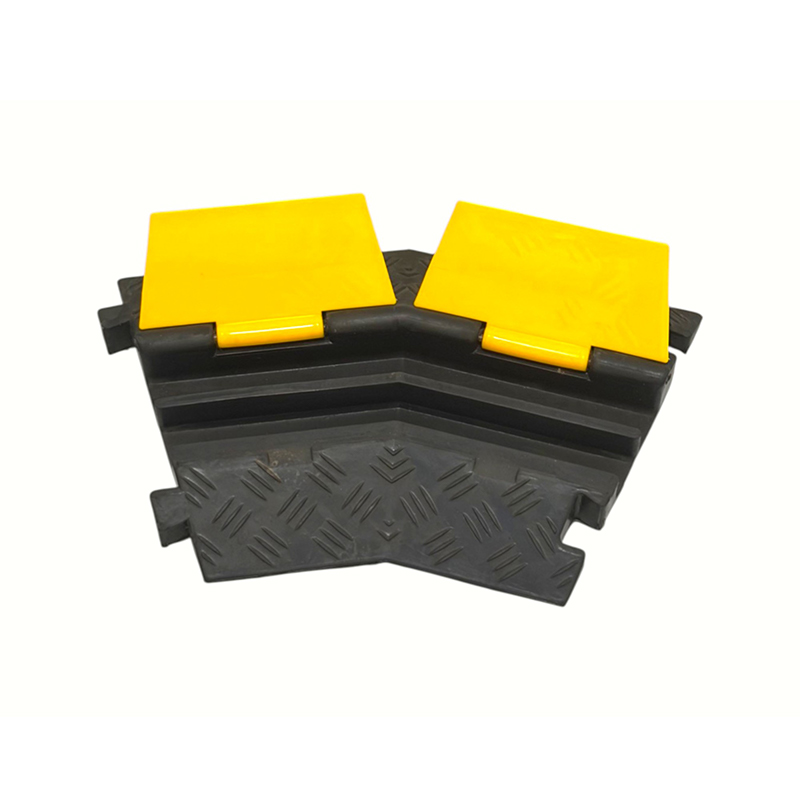

The most distinguishing feature of the all-around 45/90 degree elbow module interlocking cable protector corner is its patented flexible joint design. Unlike traditional rigid corner protectors that force cables into sharp, damaging bends, this module utilizes a unique fan-shaped or elbow geometry that seamlessly connects with standard straight sections. The interlocking system, often referred to as a "dog-bone" connector, ensures that multiple corner modules can be joined to create continuous, custom-angle pathways. This is particularly critical when cables must bypass structural pillars or follow curved roads, where a 90-degree turn might cause excessive tension on copper or fiber cores. The road cable protector aspect is enhanced by the module's ability to maintain a smooth radius, significantly reducing signal attenuation and physical wear on high-voltage power lines. Furthermore, the interlocking design eliminates the need for additional fixing pins or tools during assembly, allowing rapid deployment in time-sensitive projects. The base of the elbow module is engineered with reinforced anti-slip textures, which are essential when the protector is subjected to the shearing forces generated by turning vehicles. This ensures that the entire corridor remains stable, preventing displacement that could expose cables to traffic. When combined with standard straight ramps, this corner module creates an uninterrupted, wire-free protective corridor that meets international safety protocols.

2. Sectional Independent Flip-Top Access

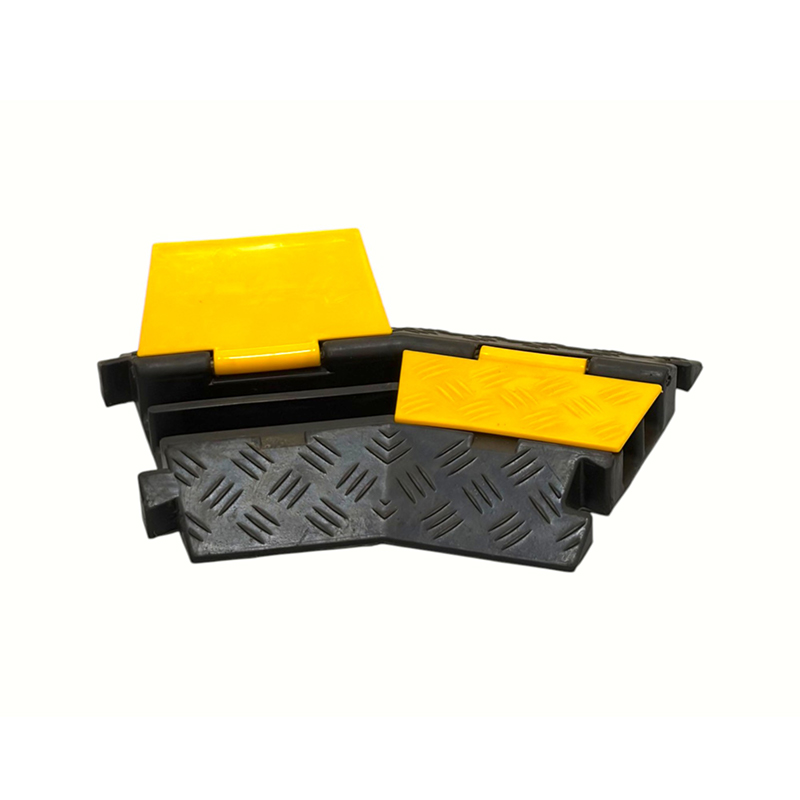

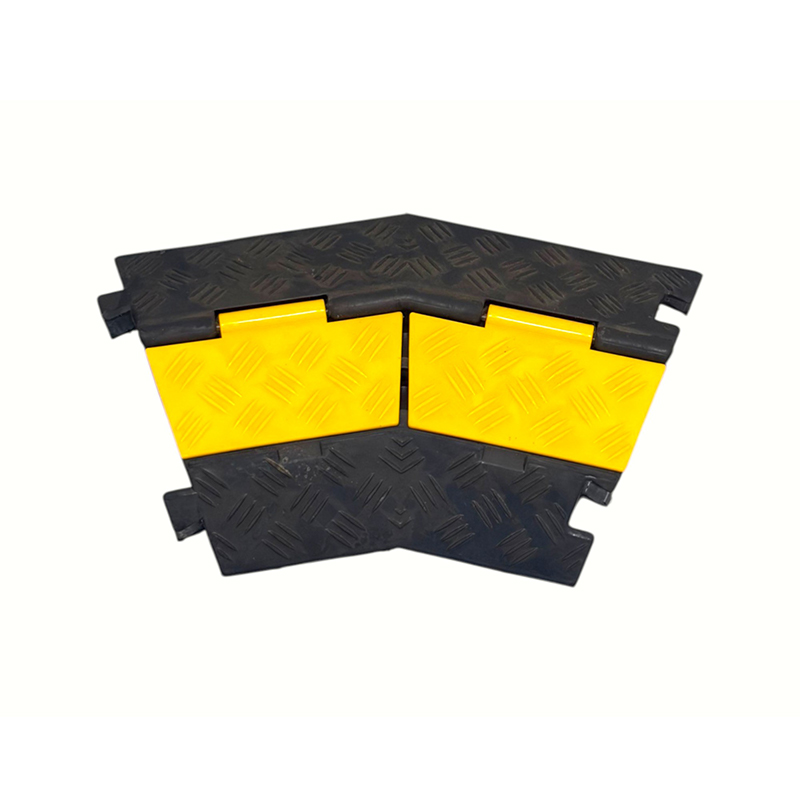

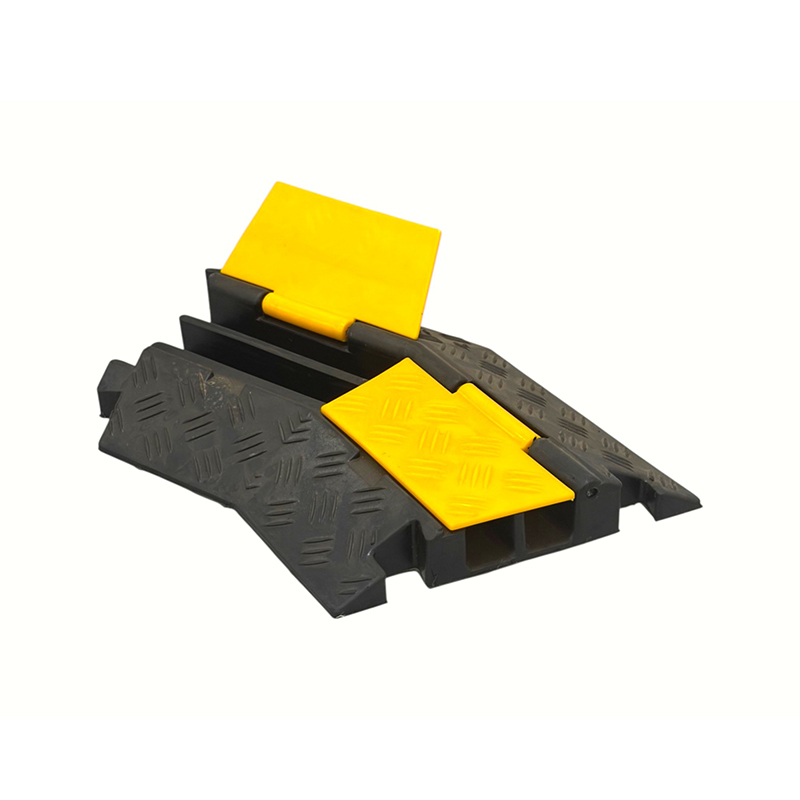

Operational efficiency is a primary concern for electrical engineers and site managers. The all-around 45/90 degree elbow module interlocking cable protector corner retains the highly practical flip-top lid system, even along its curved path. The lid is divided into short, segmented yellow PVC sections, each capable of opening independently. This feature allows technicians to access specific cable segments at the corner without having to dismantle the entire protective run. For instance, when troubleshooting a faulty connector at a 45-degree bend, the operator simply flips open the relevant lid section, performs the repair, and closes it—all while the rest of the system remains fully operational and protected. This independent opening mechanism is a significant upgrade over one-piece covers, which often require heavy lifting and full disassembly to access a single point. The high-visibility yellow lids are not just for aesthetics; they serve a dual purpose as a physical warning. The color contrast between the black rubber base and the yellow lid acts as a visual deterrent, alerting drivers to the presence of a road cable protector at corners where visibility might be limited. The lid hinges are designed to withstand repeated use, and the embossed anti-slip diamond patterns on the surface provide additional traction for pedestrians and light vehicles, reducing the risk of slips in wet or oily conditions.

3. High-Load Rubber Base and Anti-Slip Engineering

Durability under extreme loads is the hallmark of a reliable cable management system. The base of the all-around 45/90 degree elbow module interlocking cable protector corner is manufactured from high-density recycled rubber, the same grade used in heavy-duty straight sections. This material offers exceptional compression set resistance, meaning the protector does not permanently deform even after repeated crossings by forklifts or trucks. The shock absorption capability is crucial for protecting delicate fiber optics from micro-vibrations caused by passing traffic. Moreover, the base incorporates advanced anti-slip cable ramp textures that are strategically oriented to withstand lateral forces. At corners, vehicles tend to exert lateral thrust as they turn; the reinforced ribbing on the underside of the module grips the asphalt or concrete surface, preventing the protector from "walking" out of position. This is a vital safety feature, as a displaced protector can become a tripping hazard or expose cables to direct crushing. The module's design also integrates a drainage system at the interlocking joints. This prevents water accumulation inside the channel during rainy conditions, which is a common cause of short circuits and corrosion. The rubber compound is chemically resistant to oils, grease, and de-icing salts, ensuring the module retains its structural integrity in harsh outdoor environments.

4. Versatile Channel Configurations and Modular Expansion

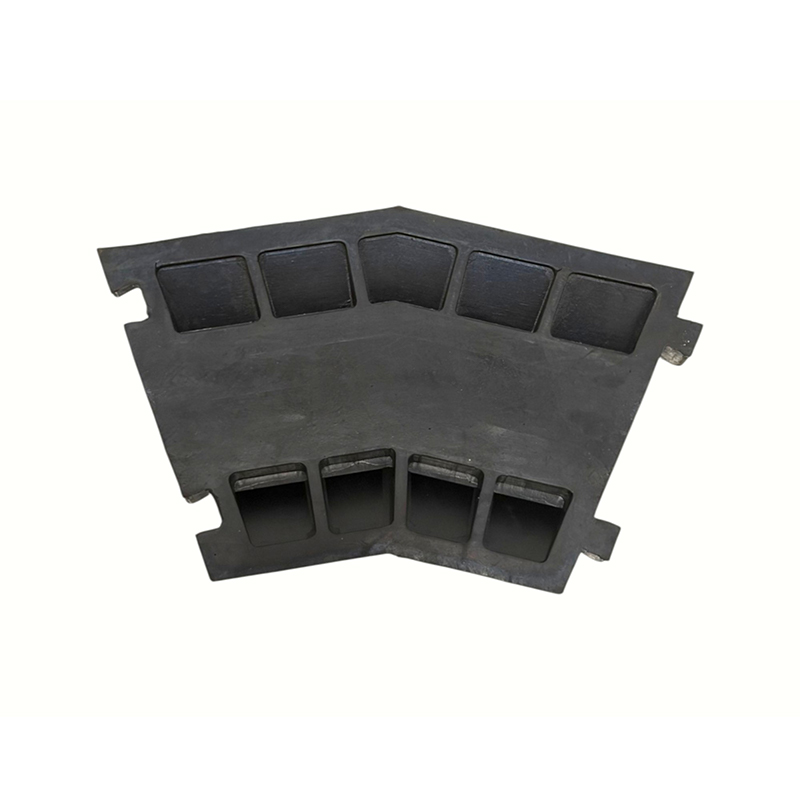

The all-around 45/90 degree elbow module interlocking cable protector corner is not a standalone component; it is part of a comprehensive ecosystem that includes 1-to-5 channel straight protectors. The standardized "dog-bone" connectors at each end of the elbow module are designed to perfectly match existing channel configurations. This modularity allows system integrators to mix and match corner units with different channel counts to create branched or multi-directional pathways. For example, a 3-channel elbow can transition into a 5-channel straight section, accommodating an increase in cable volume around a distribution hub. The internal dividing fins in the elbow are designed to guide individual cables smoothly through the curve, preventing them from crossing over each other, which can lead to overheating in power cables. The corner module's compact footprint ensures that it fits within standard pedestrian walkways without causing obstruction. Furthermore, the top surface of the module can be customized with embossed corporate branding or warning text without compromising the integrity of the anti-slip pattern. This flexibility makes it an ideal accessory for rental companies and event organizers who require a scalable solution that adapts to different venue layouts each week. The system's ease of assembly and disassembly also facilitates efficient storage and transportation, as the modules stack neatly on pallets.

5. All-Weather Resilience and Electrical Insulation

Environmental factors often dictate the success of outdoor cable installations. The all-around 45/90 degree elbow module interlocking cable protector corner excels in adverse weather conditions thanks to its superior electrical insulation properties. The rubber compound used is a dielectric material that provides a safe barrier against accidental ground faults, making it ideal for temporary power distribution at outdoor festivals. Additionally, the material is highly resistant to UV degradation, meaning it does not become brittle or crack after prolonged sun exposure. The chemical resistance of the rubber ensures that spills of fuel or hydraulic fluids—common on construction sites—will not dissolve or weaken the protector. The interlocking joints feature a labyrinth seal design that, combined with the drainage outlets, keeps internal cables dry. This prevents the common issue of moisture ingress, which can cause impedance changes in coaxial cables or corrosion in copper conductors. For winter operations, the rubber remains flexible even at sub-zero temperatures, allowing the flip-top lids to open without shattering. This all-weather capability ensures that the road cable protector remains a reliable safety device year-round, reducing maintenance costs associated with weather-related damage.
